Service Offering

From Contract Manufacturing to Full-Service-Provider

Contract Manufacturing

  • Gears with internal and external toothing
  • Spiral bevel gears
  • Worm-wheels and worm gears
  • Double crossed Helical gears
  • Spur – and crown gears
  • Sprocket wheels
  • Splined shafts and gear racks
  • Rotary & precision parts (turning, milling, grinding, shaping internal splines and grooves)
  • High-Tech Measuring Instruments

Service and Repairing

  • Inspection (also on-site)
  • Improvement of existing solutions
  • Measuring and complete remanufacture
  • Replacement of single parts
  • Service and repairing

Assembly-Group andGearbox Production

  • Production and assembly
  • Gearbox production (incl. housing)
  • Reproduction and improvement

Engineering

  • Design and construction of industrial gearboxes
  • Special-purpose-constructions (i.e. gangways for motor-yachts)
  • References:
  • Voest Alpine: re-design and construction ofroll-stands
  • Siemens Österreich: design and construction of a „last-mile“ gearbox

Get in touch for more information

Gearwheels and Precision Parts

Highest precision for almost every toothing, turning, milling

Gearwheels / Toothing

Up to quality 3 according to DIN 3962 and 3967

  • Spur gear
    • External toothing
      • straight: up to 1800 mm, face width up to 1000 mm
      • helical: bis 1800 mm, helix angle +/- 45°
    • Internal toothing
      • straight: up to 1500 mm
      • helical: up to 1500 mmm helix angle +/- 45°
  • Spiral bevel gears type „Klingelnberg“ :up to 600 mm
  • Worm-wheels / Worm gears : up to 350 mm
  • Double crossed Helical Gears
  • Spur and crown gear
  • Sprocket wheel up to 1800 mm diameter
  • Splined shafts and gear racks

Precision Parts

  • Grinding
    • External: up to 1200 mm
    • Internal: up to 800 mm
    • Flat grinding: up to 1500 x 480 x 400 mm
    • Polygon grinding: up to 400 mm, length 1500 mm
    • Taper grinding: up to 500 mm
    • Honing: up to 120 mm
  • Turning
    • External diameter up to1200 mm, length up to 6000 mm (details in attachment)
    • Spindelboring up to 165 mm
  • Milling: up to 1500 x 2000 x 6000 mm
  • Splines shafts/hubs as well as ratchet wheels
  • Internal grooves up to 80 mm
  • Balancing up to 200 kg

Machine Fleet

Throughout in-house production and high-standard measuring capabilty

Turning

9 Turning machines

  • Weiler E35, E70 und E110
  • Okuma Multus B400C
  • Heid 800 and DF1000
  • SL25-BMC
  • EMAG VSC 400
  • Maier Series F 32

Milling

5 Milling Machines

  • Soraluce FS-8000
  • Univers 4000
  • Hermle C30 and Hermle C40

Toothing

8 Gear-cutting Machines

5-Achsbearbeitungszentren Fräs-und Bohrzentrum

Spiral bevel gear machine:

  • AMK 401

Gear hobbing machine:

  • Höfler HF 1600
  • Liebherr LC 502

Gear planning machine MAAG

Gear shaping machine Lorenz

Tooth grinding

4 Flank grinding machines

  • Gleason-Pfauter P 1600 G
  • Höfler Helix 700 K and N
  • Klingelnberg Oerlikon G60

Flat/Cylindrical Grinding

6 Grinding Machines

  • 2 x Sileman BR 80
  • Karstens
  • TOS BDU 250
  • TOS
  • Schaudt

Additional Operations

Other Machines

  • Polymat 70
  • CEMB ZD 150
  • MAAG
  • AMDA Saw 400
  • 30t Press Müller

Quality Assurance / ISO 9001

fully air-conditioned measuring area

Portal coordinate measuring machinefor 3D- and gear measuring

Wenzel LH 108 Gear and LH 2015 Gear

  • 4-axial portal measuring machine; integrated circular table
  • 4000 x 2000 x1500 mm
  • Diameter up to 2400 mm, Weight up to 8 t
  • Internal gear diameter up from 12 mm
  • Module 0,5 to 80
  • Measurable gear width max. 1450 mm
  • VDI/VDE 2612/2613 Group I

Gear measuring centre

Klingelnberg P 100

  • Fully automated CNC-controlled measuring centre
  • Diameter up to 1000 mm
  • Measuring of spur gears, worm wheels and worms/wormgears, hob cutters, bevel gears, as well as measurements of rotation symmetric parts, i.e. dimensional and geometrical tolerances

Certificates

You can find our current certificates here.

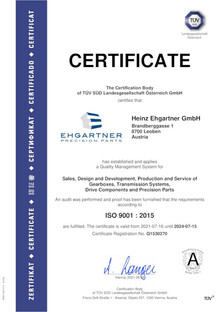

ISO 9001 : 2015

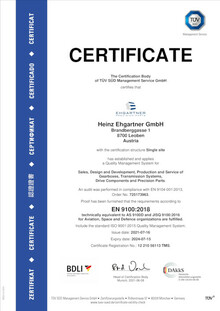

EN 9100:2018
